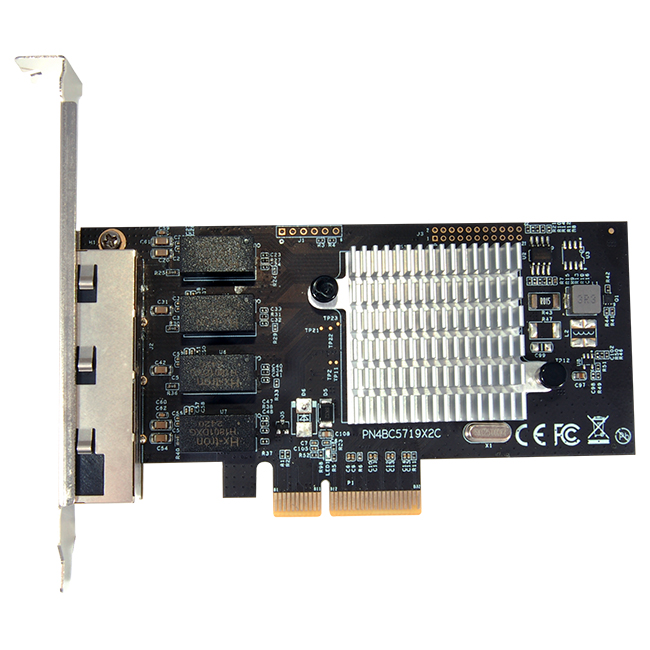

The N-1060 is a quad-port 10/100/1000 Mb/s x4 PCI Express (PCIe) Specification v2.1 Ethernet server adapter that supports the IEEE 802.3ab standard over Category-5 twisted pair cable.
The card supports offload technologies, including Large Send, TCP segmentation, and TCP/UDP/IP checksum.
Additionally, it features Receive Side Scaling (RSS), which enhances network throughput while reducing host processor utilization.
As a result, the N-1060 significantly improves system overall performance.
Furthermore, this server adapter ships in a small form factor that is suitable for both low-profile and standard chassis configurations.
Features
x4 PCI Express v2.1 at 5 GT/s or 2.5 GT/s
Quad-port 10/100/1000BASE-T Ethernet server adapter
Energy Efficient Ethernet compliant with IEEE Std 802.3az-2010
IEEE 802.3ap Clause 73 auto-negotiation
Quad 10/100/1000BASE-T full-duplex/half-duplex MACs
Virtualization support with VMware NetQueue and Microsoft VMQ
Wake-on-LAN support
TCP, UDP, and IP checksum offload
Large Send Offload, TCP Segmentation Offload
Jumbo frame support with up to 9.6 KB packet size
System Requirements
Windows 10/11 (64-bit)
Linux Kernel 5.8 or later
Package Contents
1 x N-1060 PCIe 4-Port 1G Network Adapter
1 x User Manual
